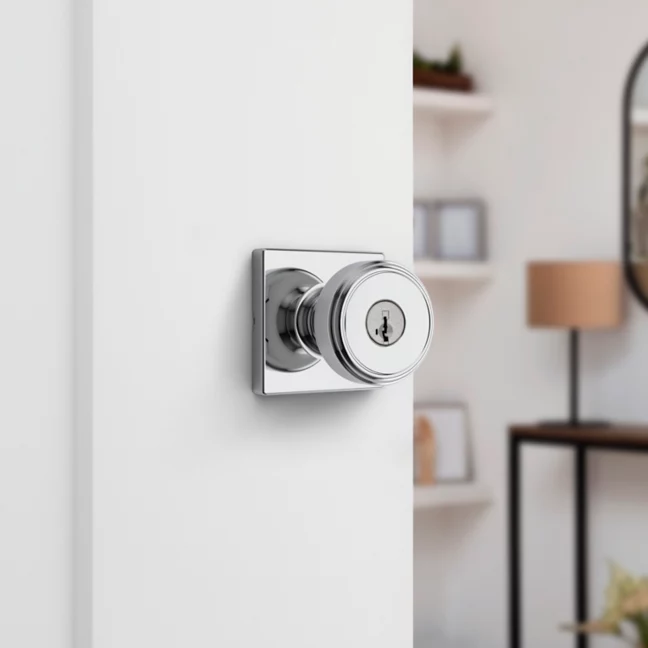

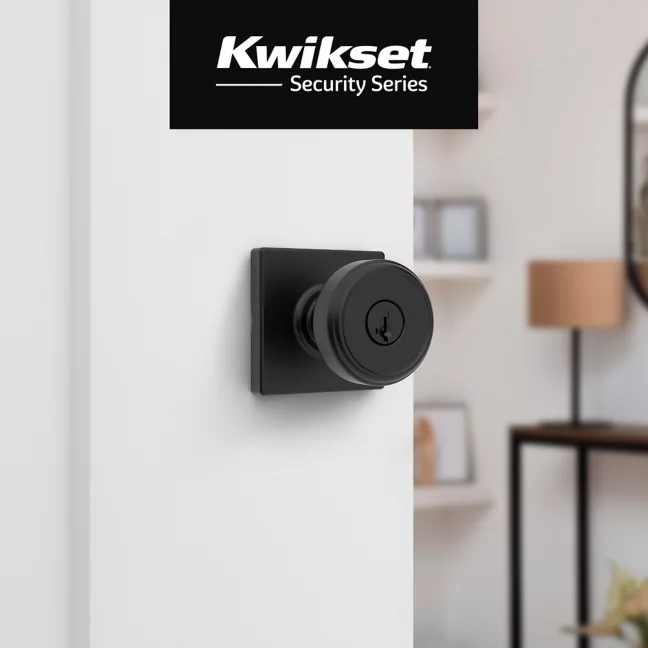

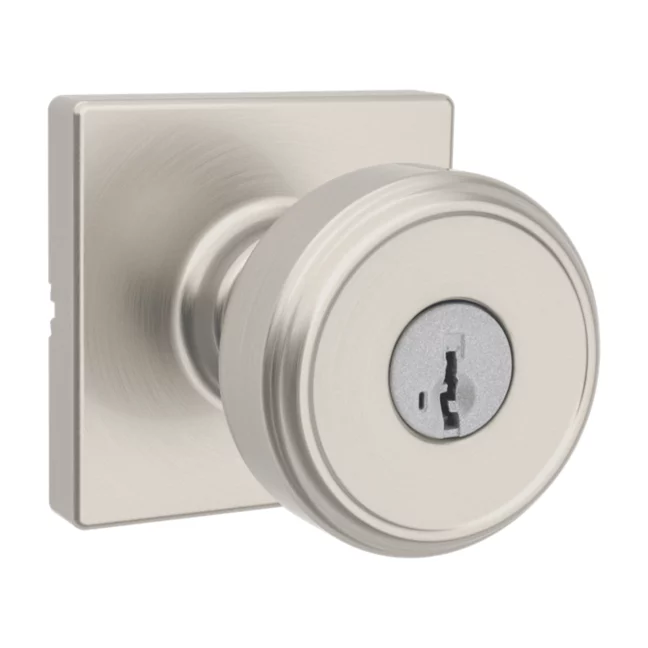

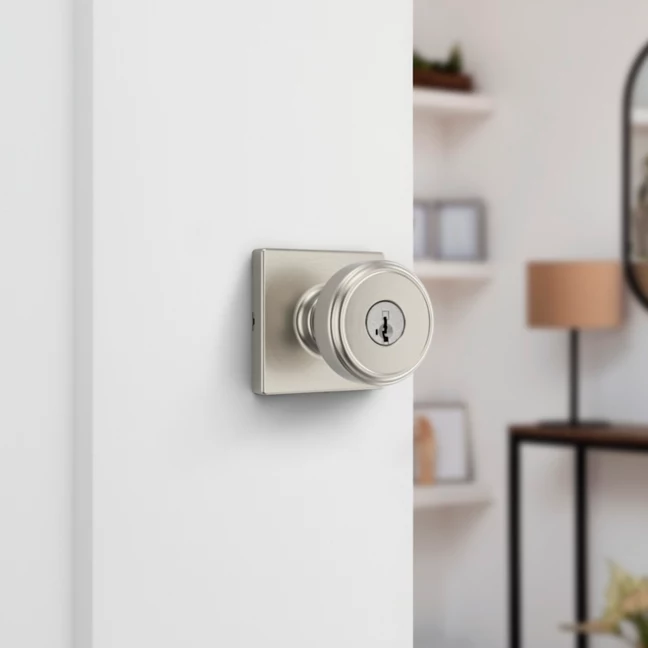

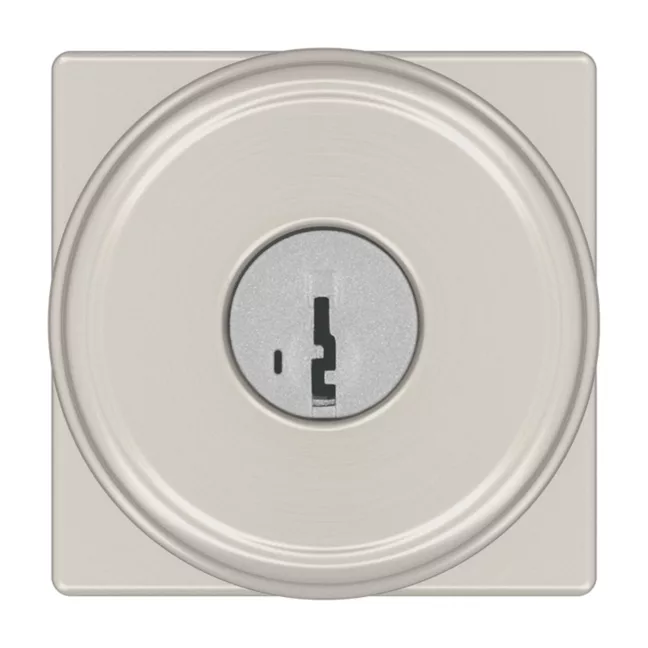

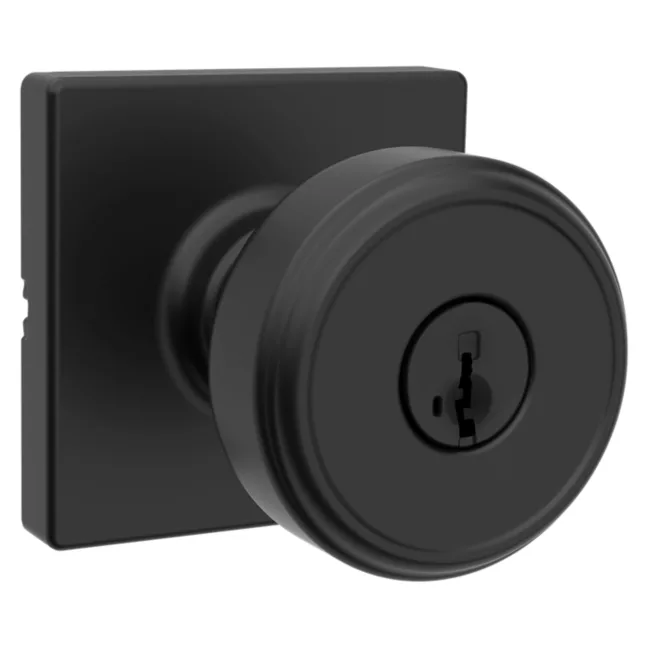

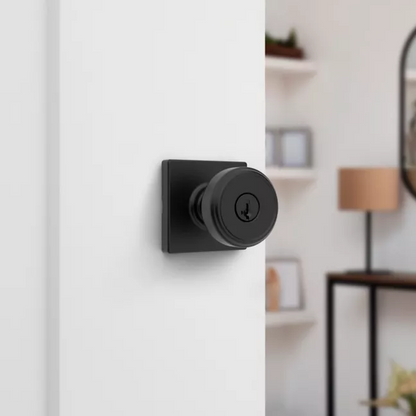

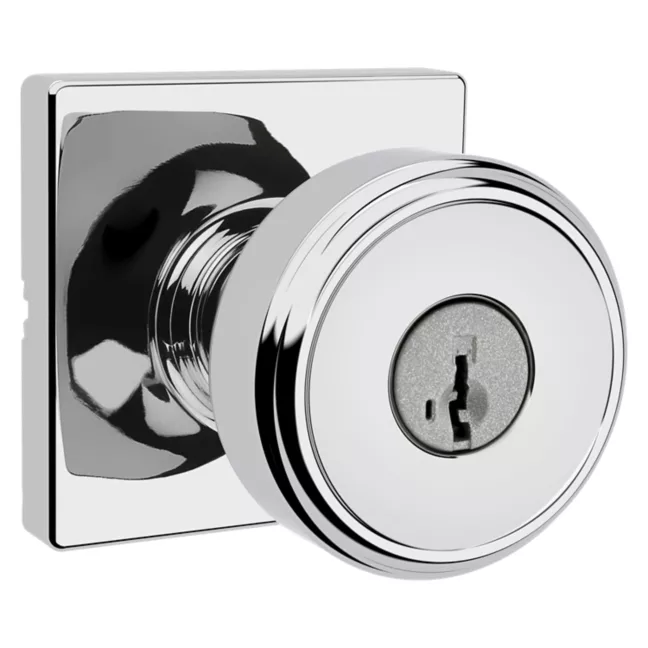

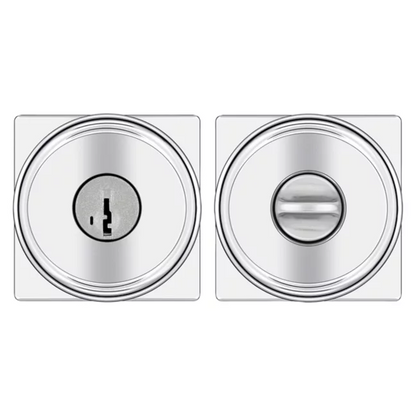

Kwikset - Maven Knob (Square) - Keyed - featuring SmartKey

Features

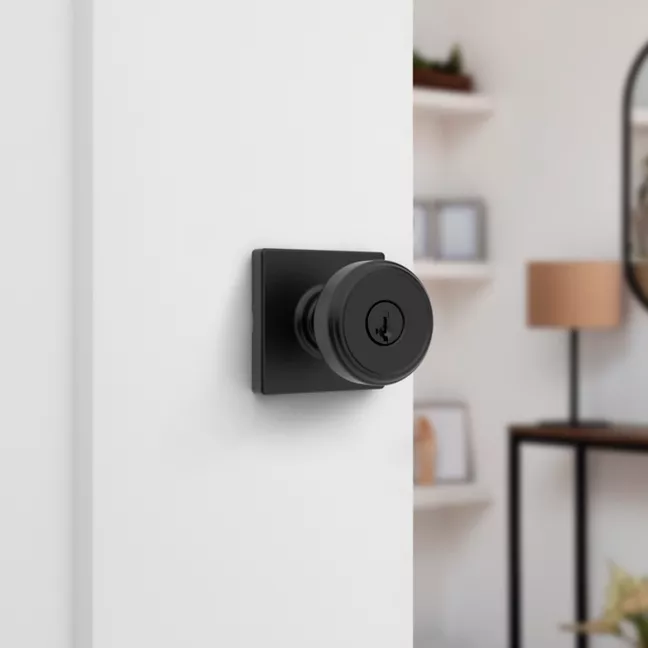

• For use on exterior doors where keyed entry and security is needed

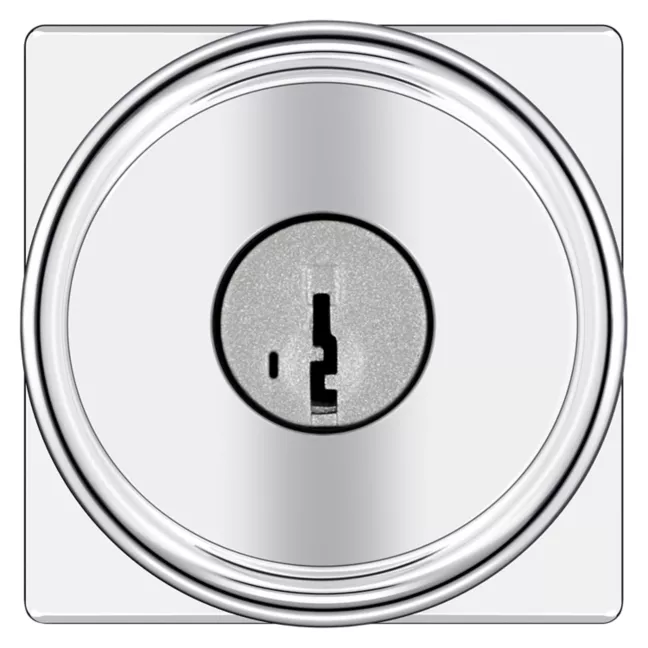

• Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
• SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
• Universal handing; fits both right handed and left handed doors

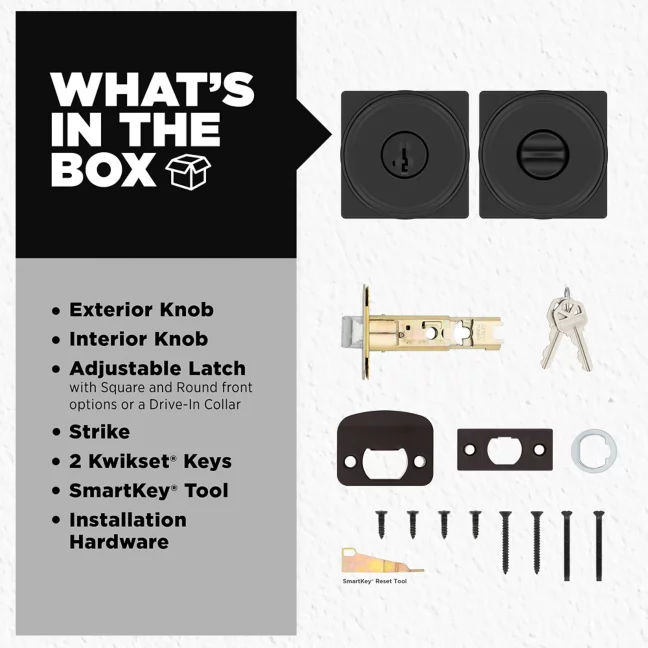

• Comes with 2 keys
• Latch has 3 interchangeable faceplates; round corner, square corner, and drive-in collar

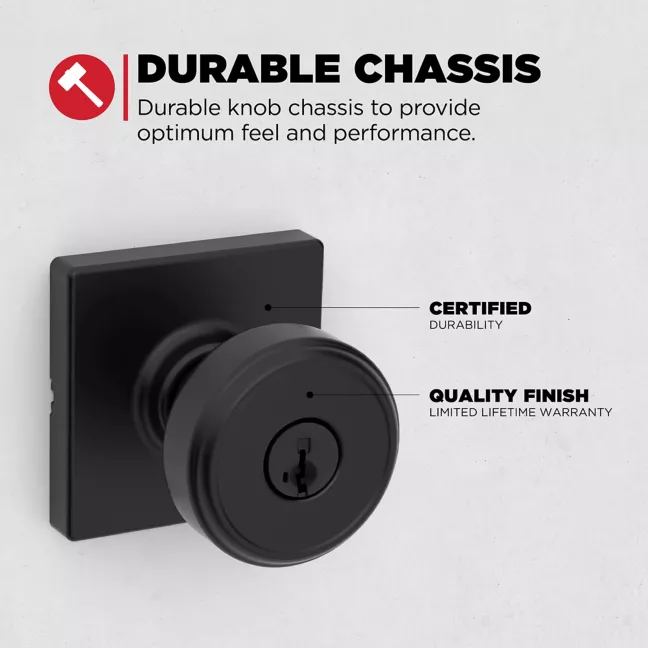

• ANSI/BHMA grade 3 certified
• Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations

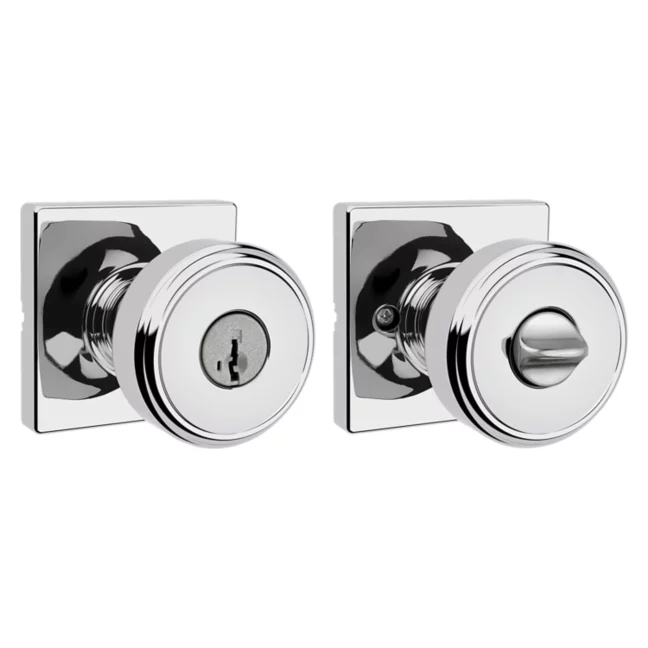

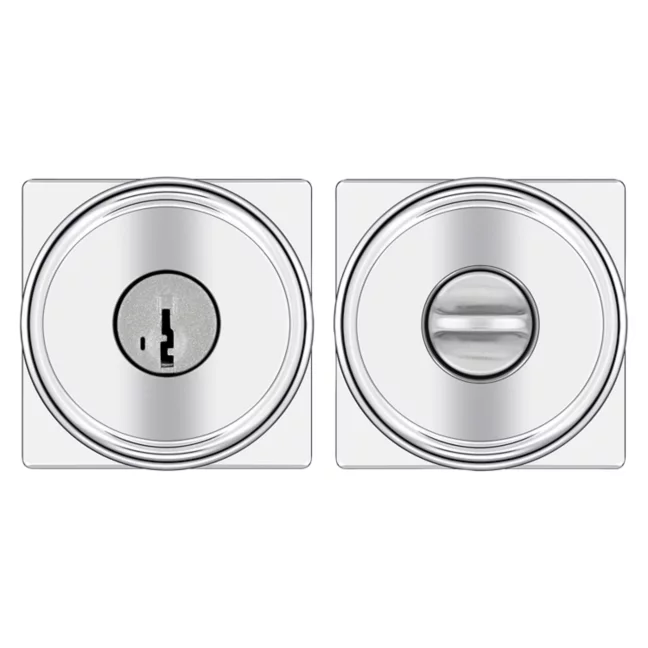

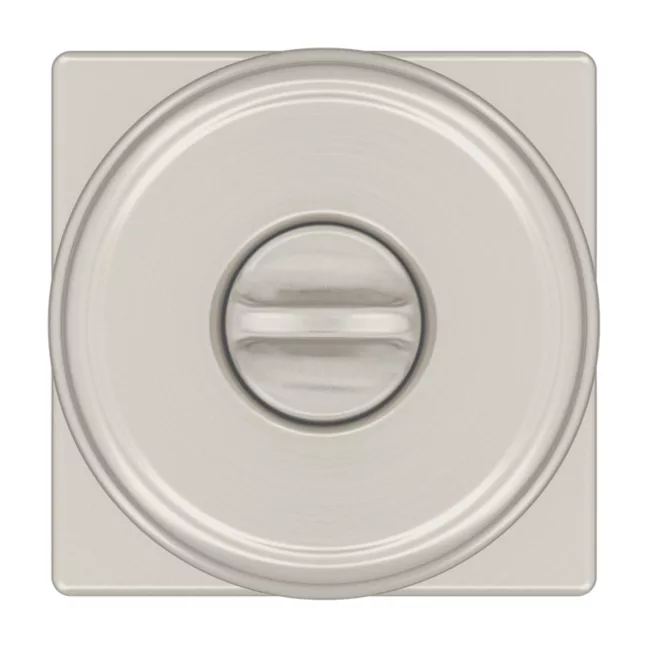

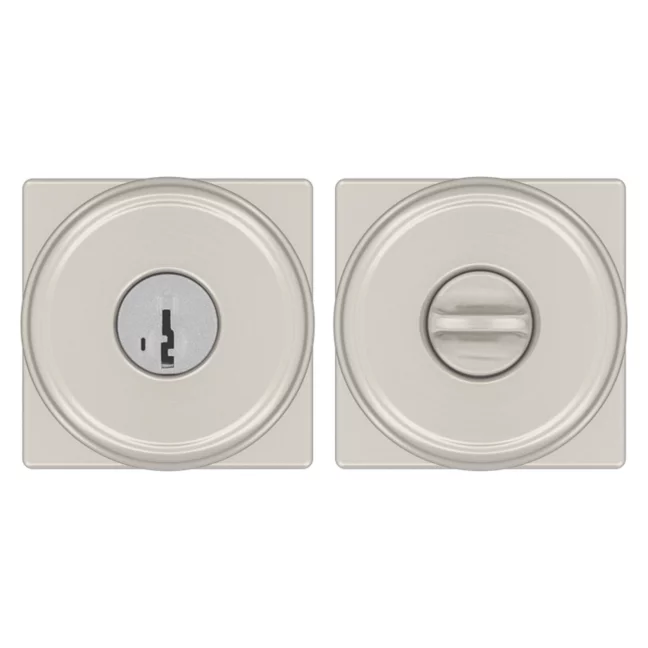

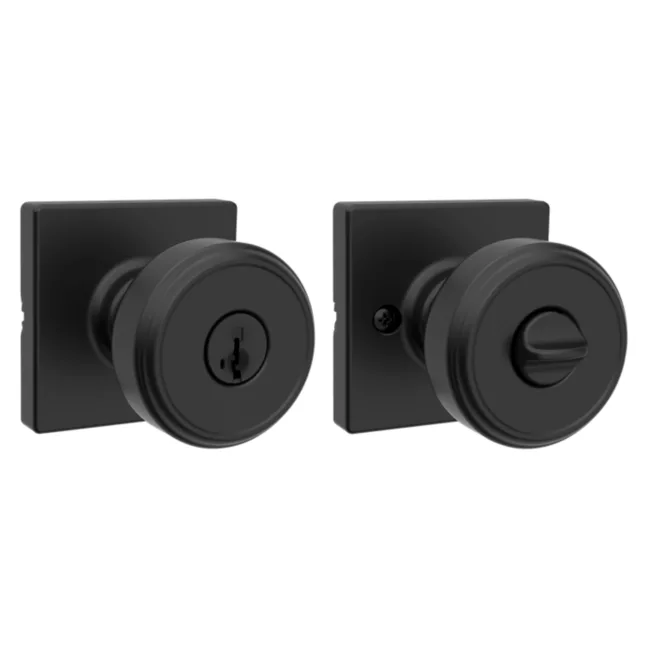

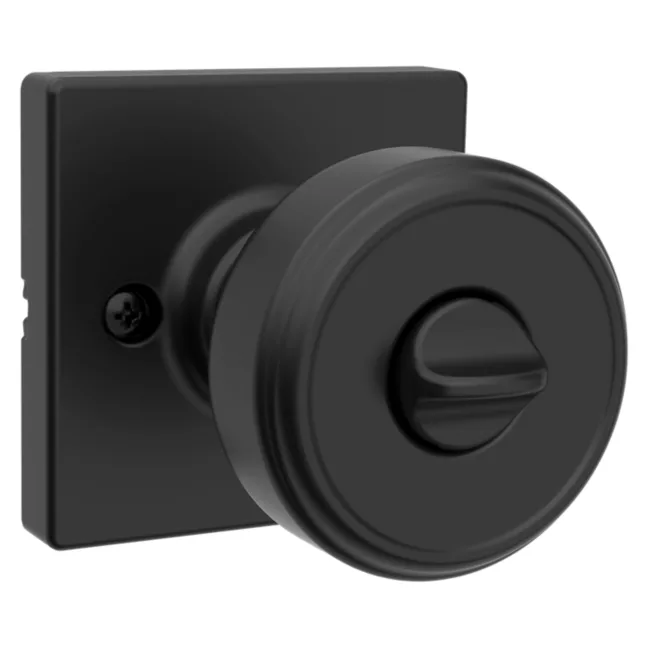

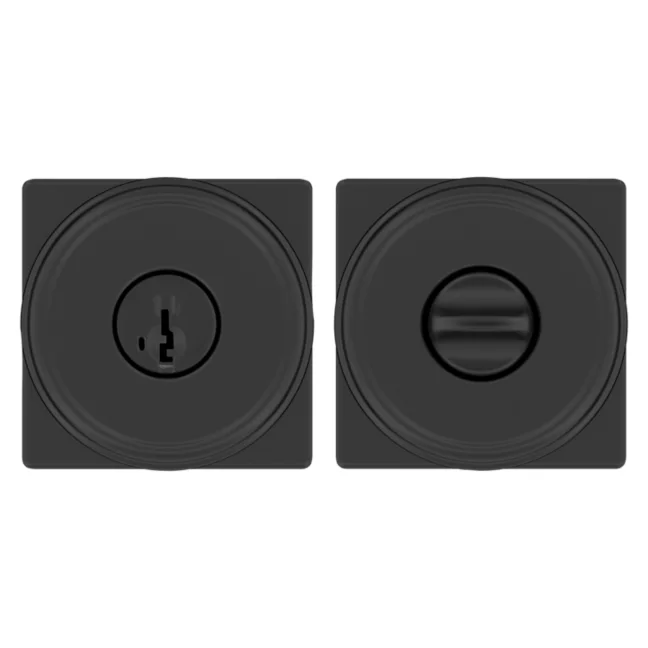

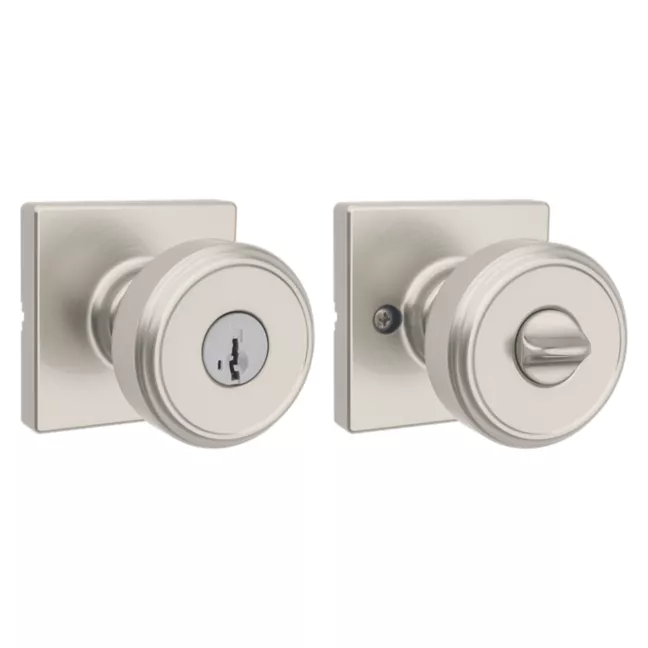

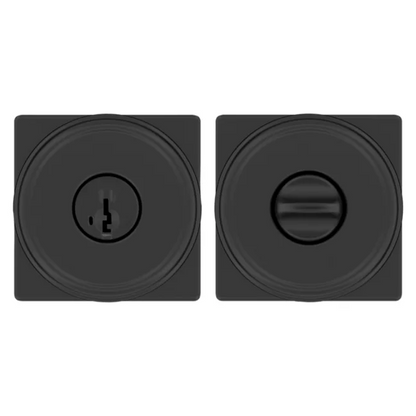

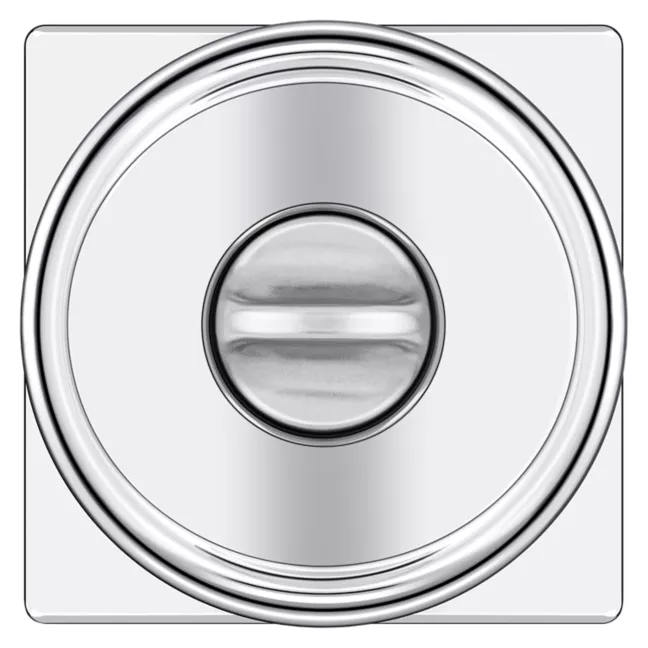

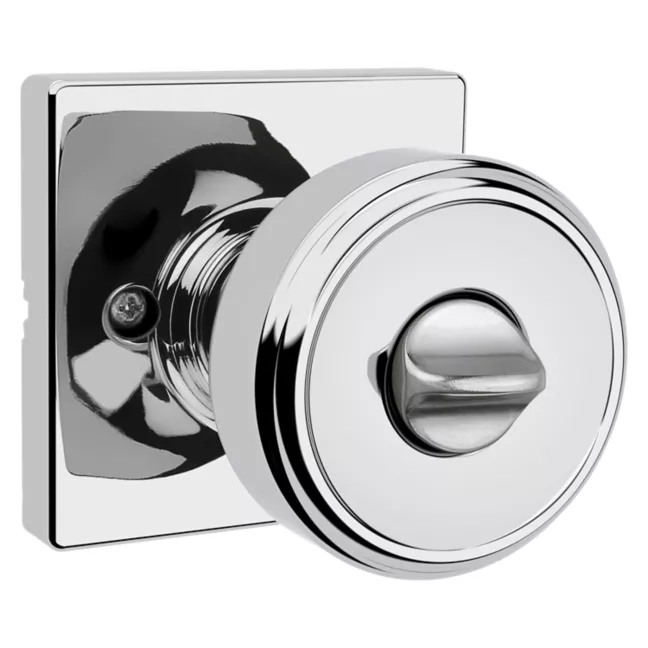

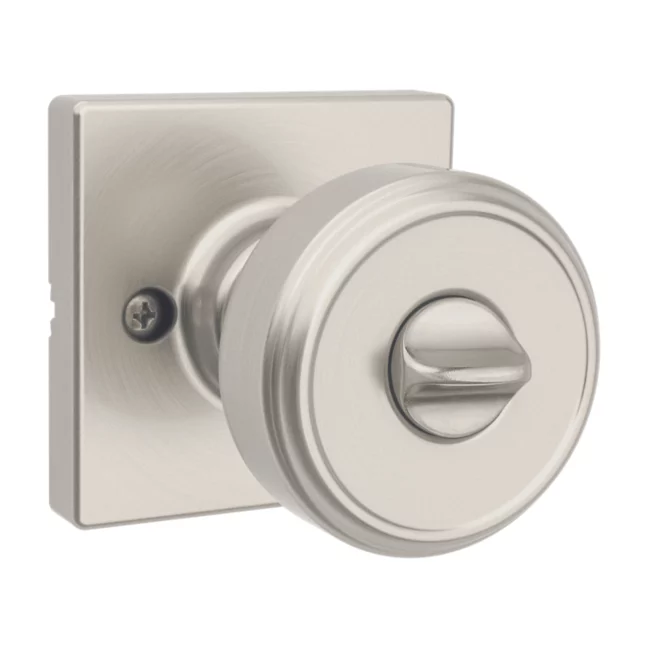

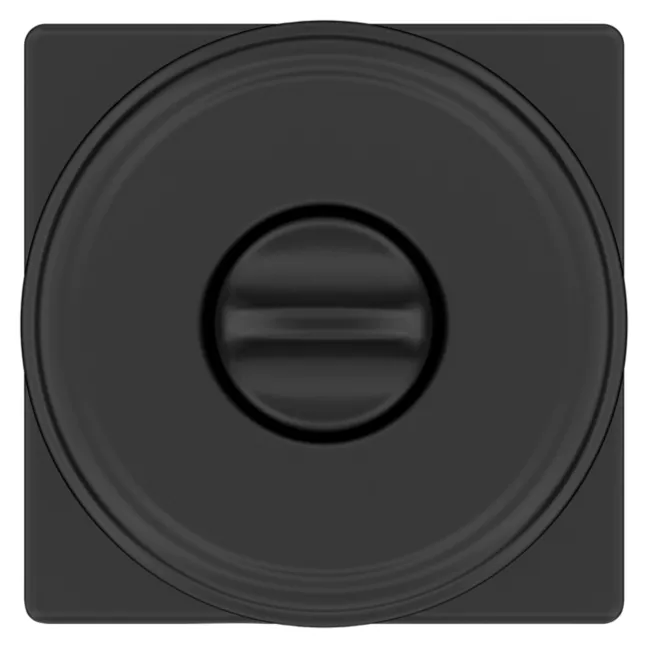

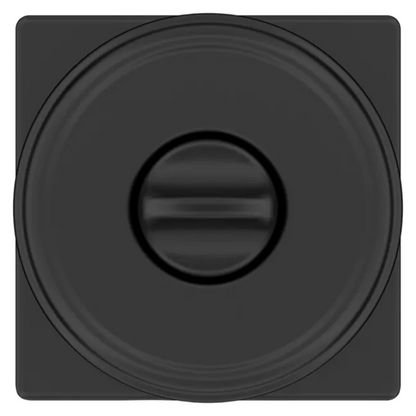

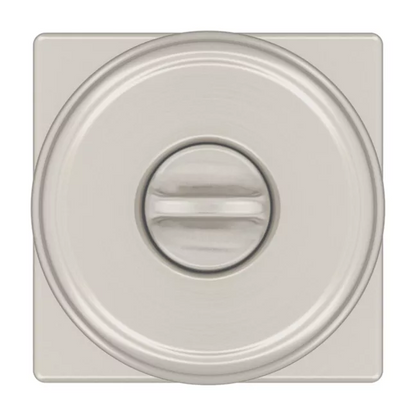

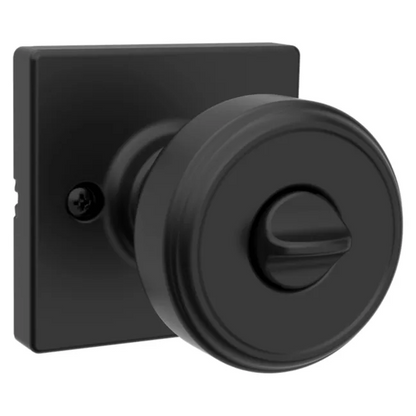

• Locking mechanism functions with turn piece on the interior of the lock

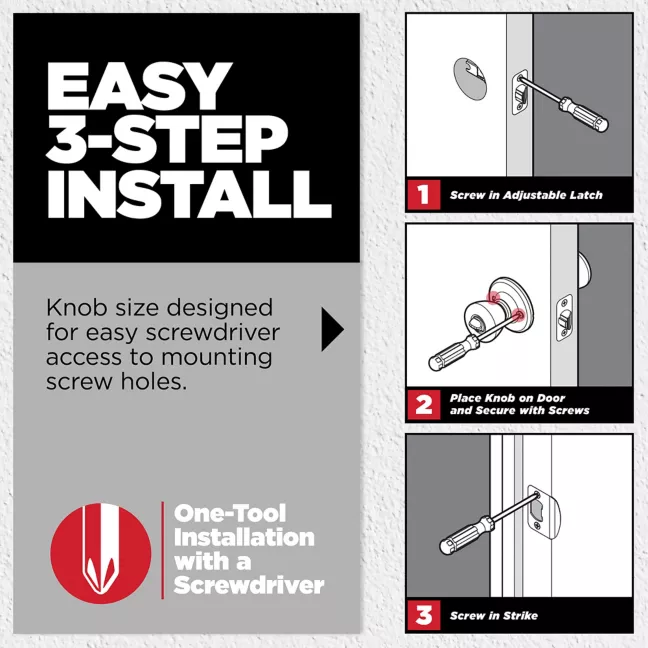

• Easily installs in minutes with just a screwdriver
• Lifetime mechanical and finish warranty
• Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces

Specifications

All Measurements are in Inches

Kwikset Family

Maven

Product Type

Knob

Style

Transitional

Entry Has SmartKey?

Yes

Has Microban?

Yes

ANSI Grade

Grade 3

UL Time Rating

Not rated

Min Door Thickness

1-3/8

Max Door Thickness

1-3/4

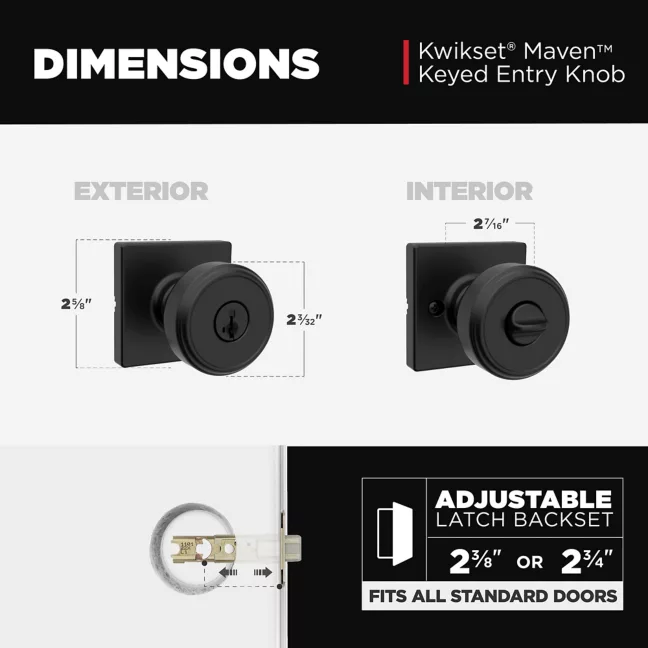

Assembled Height

2-5/8

Assembled Width

2-5/8

Assembled Length

2-7/16

Latch Backset Size

Adjustable

Cross Bore

2-1/8"

ADA Compliant

No
