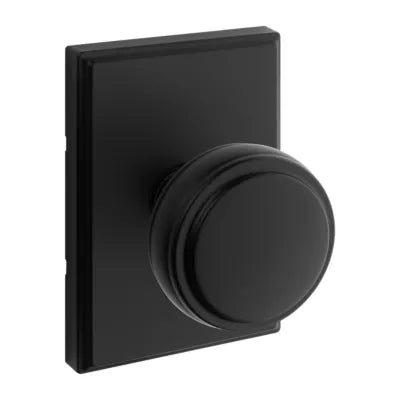

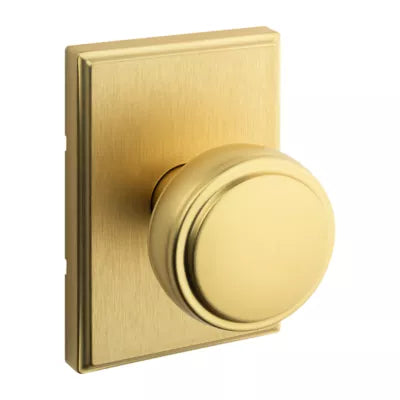

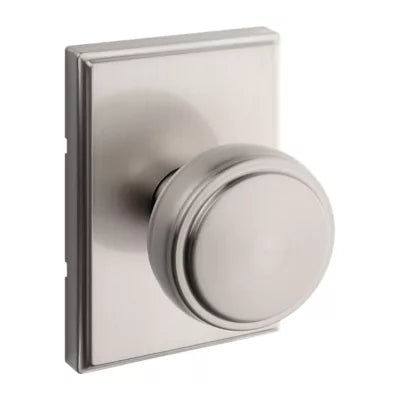

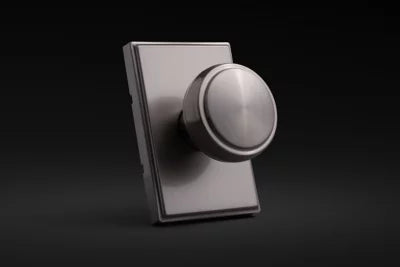

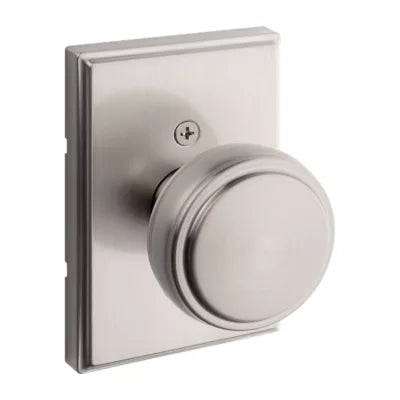

Kwikset - Sora Knob (Rectangle) - Hall/Closet

Features

• NON-LOCKING PASSAGE: Use on doors requiring no locking method, latch allows door to beopened or closed, recommended for closets and other doors where security is not needed

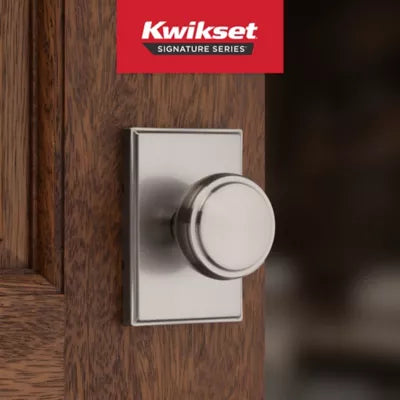

• Kwikset® SIGNATURE SERIES™: Get designer style and trusted security with this Kwikset®Signature Series™ product, enjoy quality construction and multiple finishes

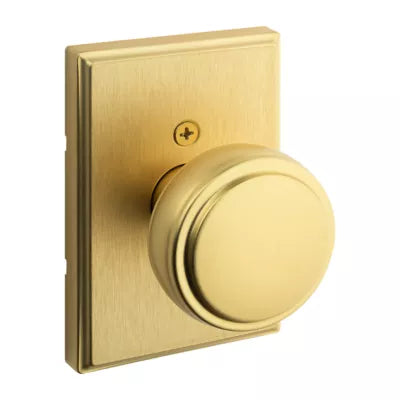

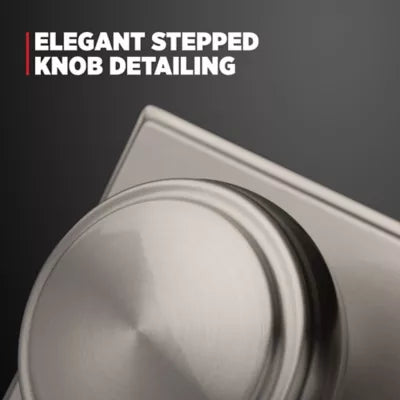

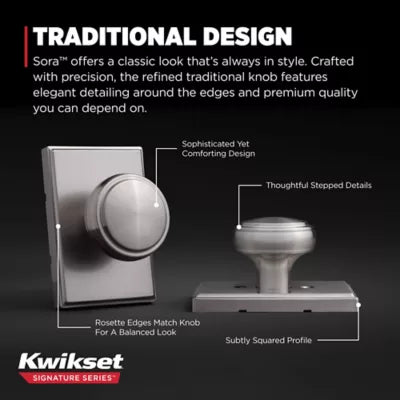

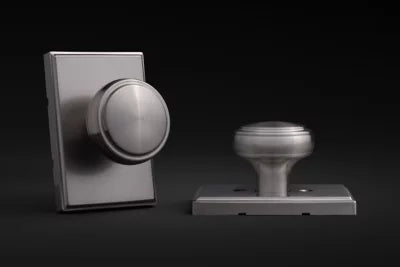

• ELEGANT KNOB DESIGN: Traditional knob features stepped detailing around the edges and asubtly squared profile, designed with meticulous attention to detail

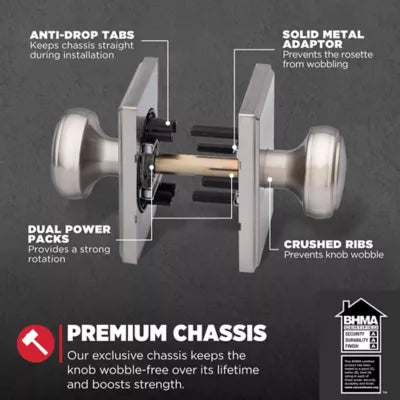

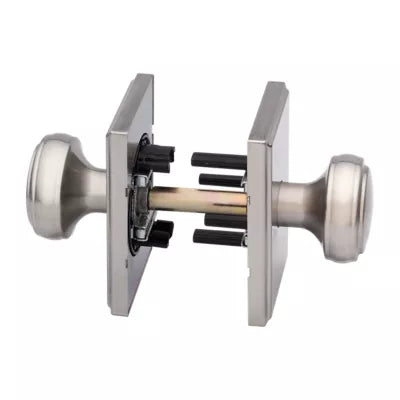

• PREMIUM CHASSIS: Kwikset®’s exclusive chassis uses dual compression springs, keeping theknob wobble-free over the lifetime of the product and enhancing its strength and rotationalfeel

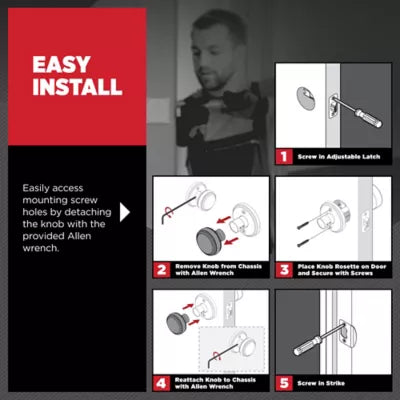

• EASY INSTALL: Do it yourself, installs in minutes with just a screwdriver and Allen wrench, allthe hardware you need is included for a hassle-free installation, detailed directions provided

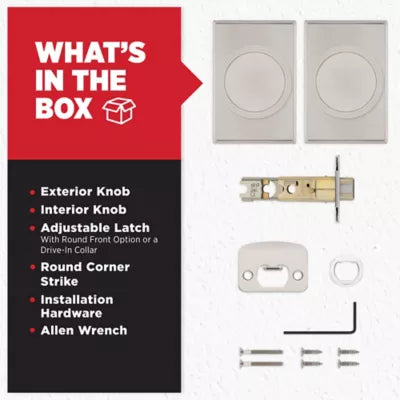

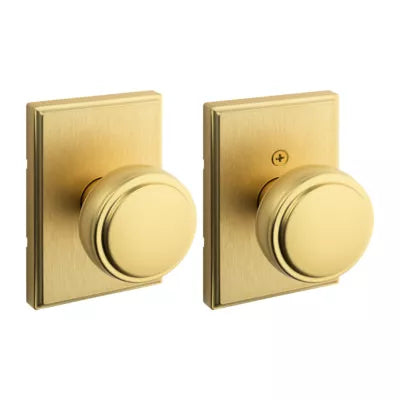

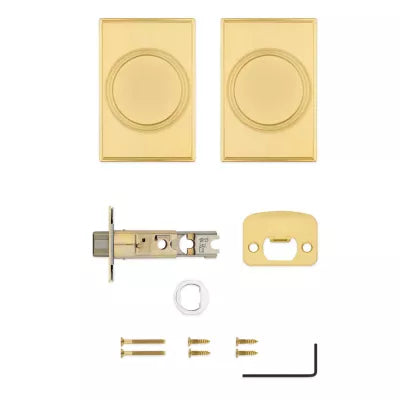

• BOX INCLUDES: Passage knob, adjustable latch with round front option or a drive-in collar,round corner strike, installation hardware and Allen wrench
• WARRANTY PROTECTION: Our products are backed by a lifetime mechanical and finishwarranty with great customer service, see Kwikset® warranty for more details
• FITS STANDARD DOORS: Fits standard size doors 1-3/8" to 1-3/4" thick, latch backset adjuststo either 2-3/8" or 2-3/4" by sliding the adjustment pin during installation
• CERTIFIED TRUSTED QUALITY: Security, Durability and Finish are Grade AAA BHMA certified,designed for the highest level of security and the toughest environments with frequent use

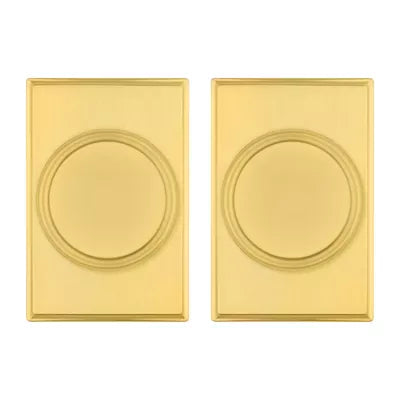

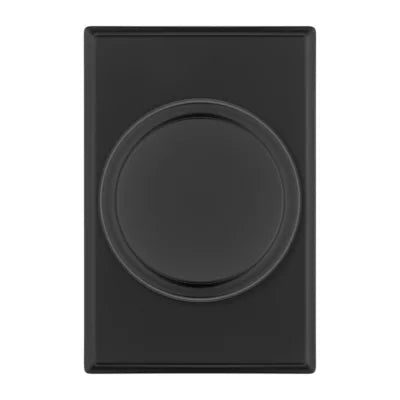

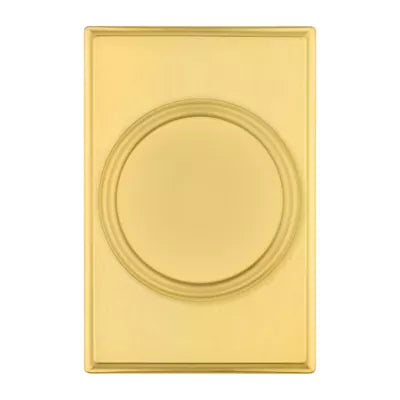

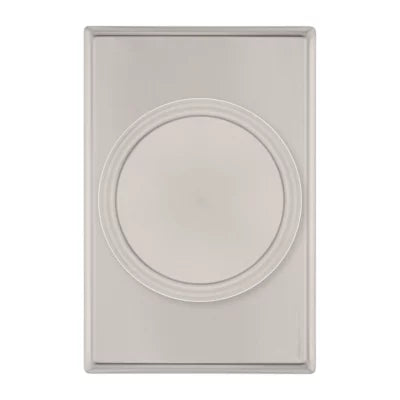

• MATCHING ROSETTE: The rosette features stepped detailing around the edges, thoughtfullydesigned to complement the knob for a balanced and cohesive look
• Microban® PROTECTION: Kwikset®’s door hardware is treated with Microban®, this offers powerful product protection that is 99.9% cleaner than an unprotected surface Note: Satin Brass and Matte Bronze will not include Microban

Specifications

All Measurements are in Inches

KWIKSET FAMILY
Sora
PRODUCT TYPE
Knob
STYLE
Traditional
ENTRY HAS SMARTKEY?
No
HAS MICROBAN?
No
ANSI GRADE
AAA
UL TIME RATING
Not rated
MIN DOOR THICKNESS
1-3/8
MAX DOOR THICKNESS
1-3/4

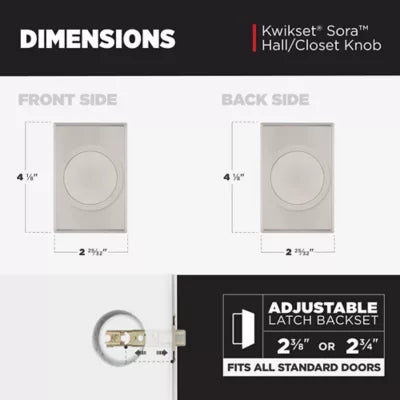

ASSEMBLED HEIGHT
4-1/8
ASSEMBLED WIDTH
2-25/32
ASSEMBLED LENGTH
2-9/32
LATCH BACKSET SIZE
Adjustable
CROSS BORE
2-1/8"
ADA COMPLIANT
No
