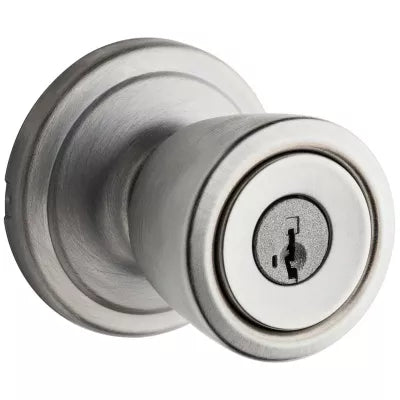

Abbey Knob - Keyed

Re-Key to any KW1 Keyway Key

While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.

Features

Designer style and superior security with this Kwikset Signature Series™ product For use on exterior doors where keyed entry and security is needed Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds. SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options Universal handing; fits both right handed and left handed doors Comes with 2 keys Latch has 3 interchangeable faceplates; round corner, square corner, and drive-in collar ANSI/BHMA grade 2 certified Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations Locking mechanism functions with turn piece on the interior of the lock Easily installs in minutes with just a screwdriver Lifetime mechanical and finish warranty

Specifications

All Measurements are in Inches

KWIKSET FAMILY
Abbey
PRODUCT TYPE
Knob
STYLE
Traditional
ENTRY HAS SMARTKEY?
Yes
HAS MICROBAN?
No
ANSI GRADE
Grade 2
UL TIME RATING
Not rated
MIN DOOR THICKNESS
1-3/8
MAX DOOR THICKNESS
1-3/4
ASSEMBLED HEIGHT
2-5/8
ASSEMBLED WIDTH
2-5/8
ASSEMBLED LENGTH
2-7/16
CROSS BORE
2-1/8"
ADA COMPLIANT
No
