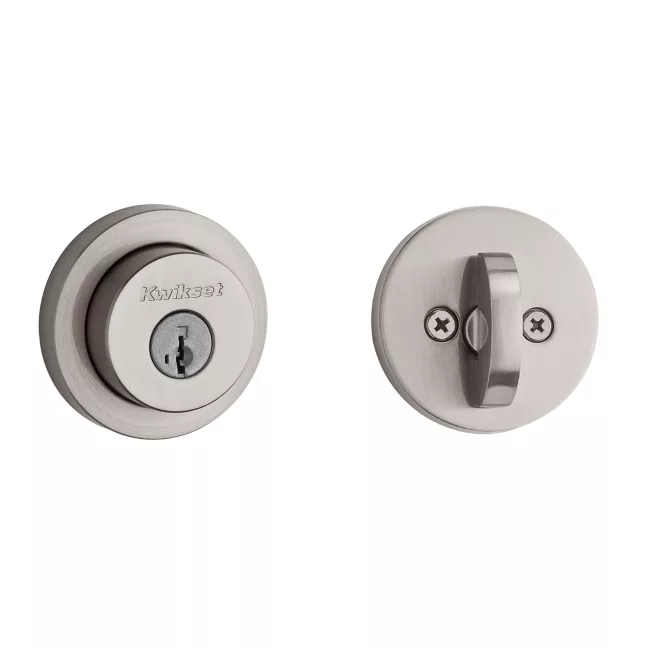

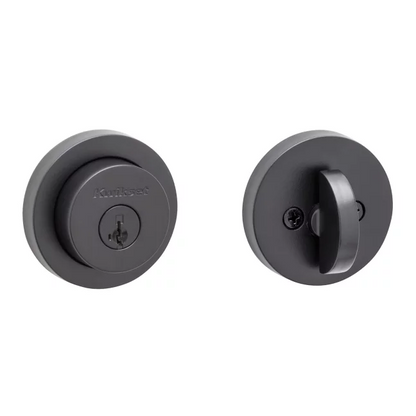

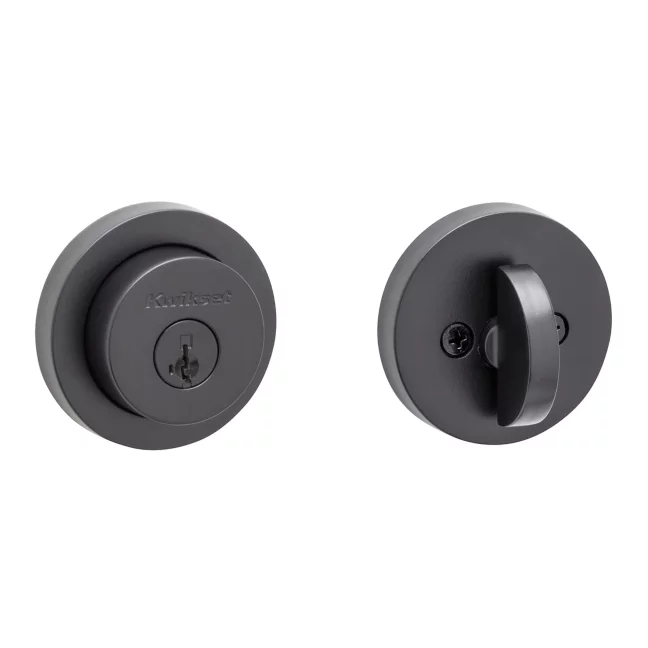

158 Deadbolt - Keyed One Side - featuring SmartKey

Features

• Designer style and superior security with this Kwikset Signature Series™ product
• For use on exterior doors where keyed entry and security is needed
• Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
• SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options

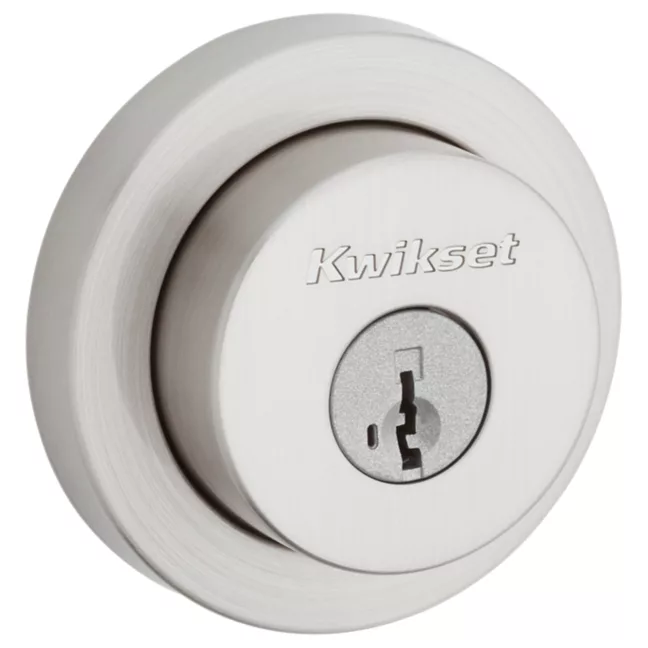

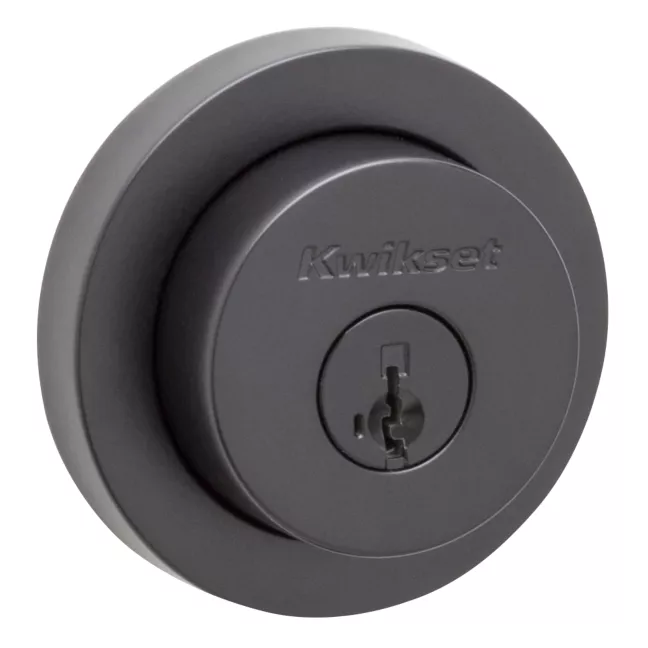

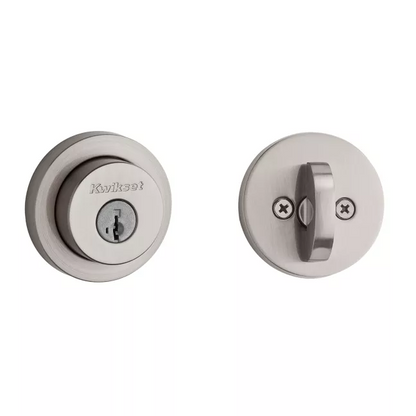

• Deadbolt operated by key outside and thumb turn inside
• Comes with 2 keys
• Latch has 3 interchangeable faceplates; round corner, square corner, and drive-in collar
• ANSI/BHMA grade 2 certified
• 1 inch deadbolt throw

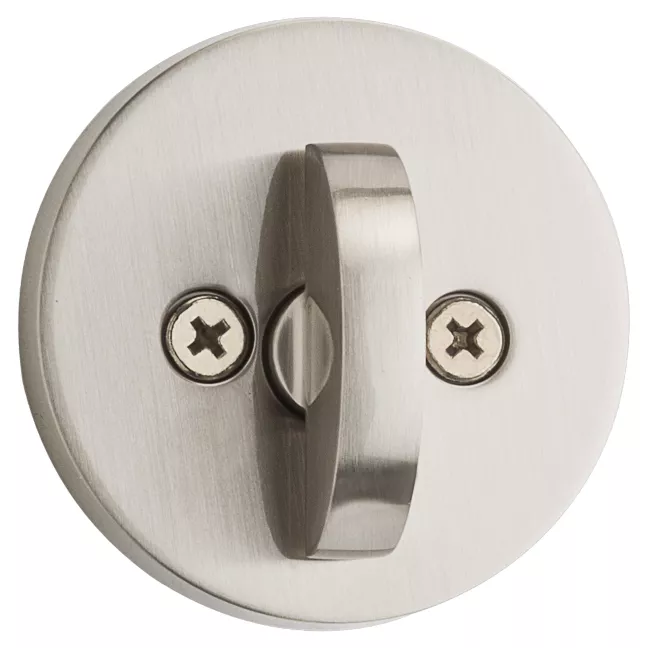

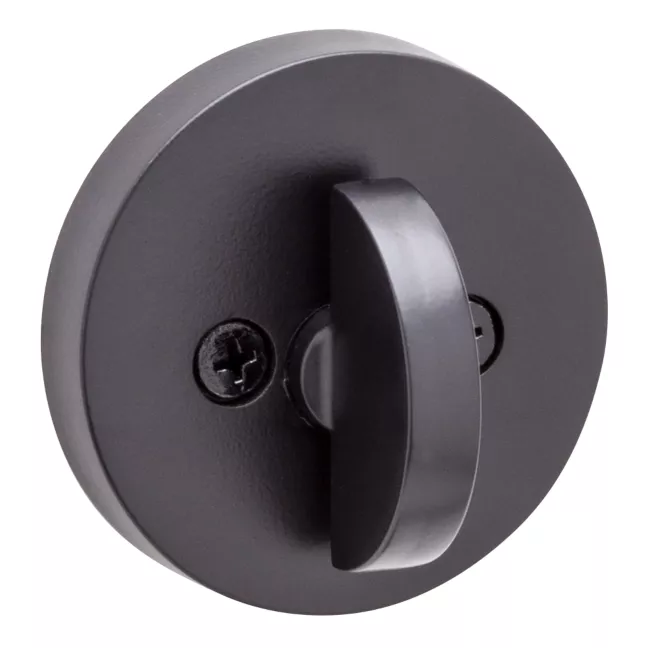

• Locking mechanism functions with turn piece on the interior of the lock

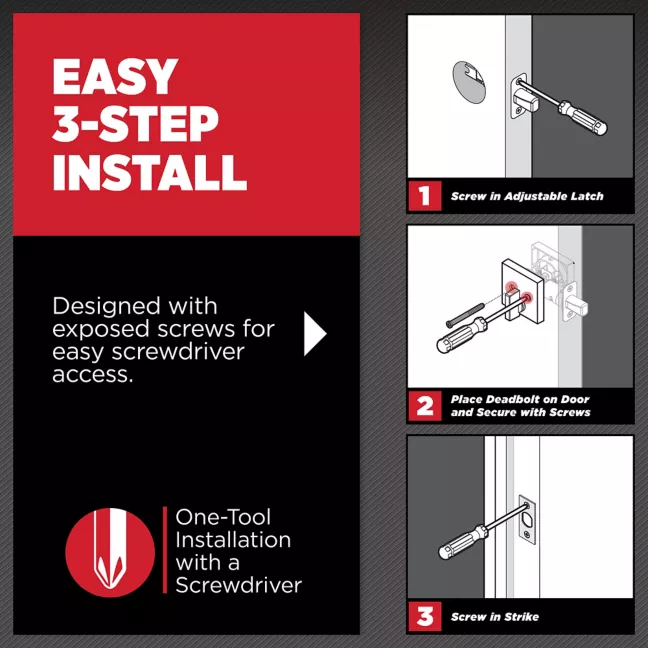

• Easily installs in minutes with just a screwdriver
• Lifetime mechanical and finish warranty

Specifications

All Measurements are in Inches

Kwikset Family

158/159 Deadbolt

Product Type

Deadbolt

Entry Has SmartKey?

Yes

Has Microban?

No

ANSI Grade

Grade 2

UL Time Rating

Not rated

Min Door Thickness

1-3/8

Max Door Thickness

1-3/4

Assembled Height

2-17/32

Assembled Width

2-17/32

Assembled Length

15/16

Cross Bore

2-1/8"

ADA Compliant

Interior Turn Piece Only
